Reliable electrical connections are essential for equipment that operates in demanding environments. Industrial machinery, aerospace systems, vacuum chambers, scientific instruments, and specialized electronic devices often require electrical signals and power to pass through sealed enclosures. In these applications, ordinary connectors may not provide the required protection against gas leakage, moisture, pressure differences, or environmental contamination. Hermetic connectors offer a specialized solution by combining electrical connectivity with a carefully engineered sealing barrier.

A hermetic connector is designed to provide electrical connections through a sealed boundary while meeting a specified leak-rate requirement. It often incorporates hermetic sealing technology to protect the internal environment of an enclosure. Understanding the relationship between hermetic connectors and hermetic seals helps engineers select components that support reliable operation and long service life.

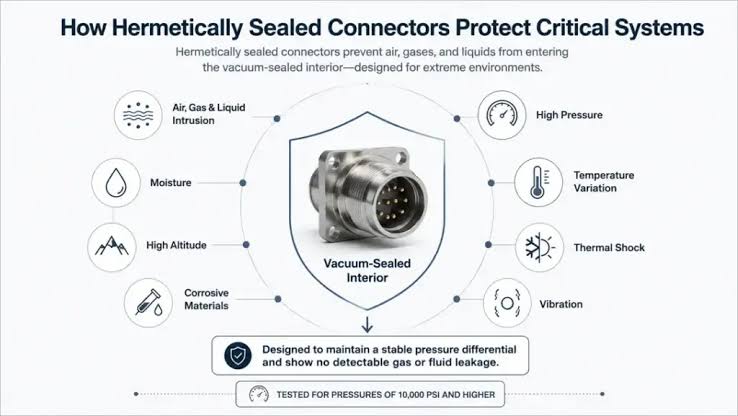

What Are Hermetic Connectors?

Hermetic connectors are electrical connection components designed for applications where maintaining a sealed boundary is important. They allow electrical power or signals to pass between the inside and outside of an enclosure without creating an uncontrolled pathway for gases or moisture.

A typical design may include a metal housing, conductive contacts, insulating materials, and a sealed interface. Depending on the application, the insulating and sealing components may use glass, ceramic, specialized polymers, or other engineered materials.

Hermetic connectors are often installed through an enclosure wall, bulkhead, vacuum chamber, or pressure boundary. Their sealing performance is determined by the complete assembly, including the connector body, electrical contacts, insulating materials, mounting interface, and any associated sealing elements.

Not every environmentally protected connector is hermetic. Water resistance, dust protection, and hermeticity describe different performance characteristics. Buyers should confirm the specified leak rate and test method when gas-tight performance is necessary.

How Hermetic Seals Work With Electrical Connectors

A hermetic seal creates a barrier that limits the passage of gases and moisture through an interface. In an electrical connector, this barrier is especially important where conductive contacts must cross the wall of a sealed enclosure.

The sealing technology must maintain electrical insulation while preventing unwanted leakage. Glass-to-metal and ceramic-to-metal constructions are common approaches in specialized connector designs. Other engineered sealing systems may be suitable depending on the pressure, temperature, materials, and application requirements.

The seal and connector perform related but different functions. The connector establishes the electrical interface, while the hermetic sealing structure maintains the required environmental barrier. Both must meet their respective specifications for the assembly to perform reliably.

For example, a vacuum chamber may contain sensors that transmit measurement data to external equipment. A properly selected hermetic connector can carry those signals through the chamber wall while helping maintain the required vacuum conditions.

Engineers should evaluate the complete assembly rather than focusing exclusively on contact design or sealing material.

Important Electrical Performance Requirements

Electrical performance is one of the first considerations when choosing a hermetic connector. The component must be compatible with the voltage, current, and signal requirements of the system.

Voltage and current ratings help determine whether the connector is suitable for the intended electrical load. Contact resistance can influence power loss and heating, while insulation resistance and dielectric performance help establish the connector's electrical isolation characteristics.

Signal applications may require additional consideration of frequency, shielding, impedance, or electrical noise. Coaxial connectors, for example, may be used where maintaining signal characteristics is important. Thermocouple connections may require attention to conductor materials and measurement accuracy.

The number and arrangement of contacts should also match the equipment's design. Engineers must confirm that the chosen configuration provides enough connections without compromising the required electrical clearances or mechanical arrangement.

Electrical ratings should always be verified using the manufacturer's documentation. A connector that physically fits the system is not necessarily suitable for its electrical demands.

Pressure and Vacuum Compatibility

Hermetic connectors are often used in systems that operate under vacuum or positive pressure. Vacuum applications require the connector to help limit gas entry, while pressure applications may require it to withstand a specified pressure difference.

The operating direction of the pressure difference can matter. Engineers should confirm whether the component is rated for pressure from one side, both sides, or specific pressure conditions. They should also consider pressure cycling and the relationship between pressure and temperature.

Vacuum applications may require a low helium leak rate, while high-pressure systems may need mechanical and sealing performance verified at defined pressure levels. The appropriate test method depends on the product design and its intended use.

A connector's pressure rating should not be assumed to cover every temperature or operating condition. Buyers should review the exact specifications and qualification requirements for their application.

Materials and Environmental Conditions

Material selection affects the performance and durability of hermetic connectors. Metal housings provide structural support, while glass or ceramic materials can provide electrical insulation and form part of the sealed interface.

The chosen materials must be compatible with the operating temperature and surrounding environment. Chemical exposure, humidity, vibration, thermal cycling, and mechanical loading can influence long-term performance.

For example, a connector used in a chemical processing environment may need materials compatible with particular gases or fluids. A component used in a vacuum chamber may require attention to outgassing from materials inside the chamber. Applications exposed to frequent temperature changes must also account for differences in thermal expansion between materials.

Material selection should therefore be based on the complete operating environment rather than a single property.

Applications Across Different Industries

Hermetic connectors serve a variety of specialized applications.

In aerospace and defense, they may support electrical connections in sealed electronic housings, instrumentation, sensors, and communication systems. These applications can involve vibration, temperature variation, and strict qualification requirements.

In scientific and industrial vacuum systems, hermetic connectors provide electrical pathways into chambers used for experiments, material processing, and testing. Maintaining the required vacuum is important for system performance.

In industrial manufacturing, sealed electrical interfaces may be used in specialized sensors, pressure-monitoring equipment, and control systems exposed to challenging environments.

Medical and laboratory instruments may also use hermetic connectors where a controlled internal environment is required. Suitability must be established according to the device's design and applicable regulatory requirements.

In marine and subsea applications, specialized hermetic connectors may support electrical connections under pressure or in environments where moisture and corrosion are important concerns. The exact depth or pressure capability must be confirmed from the product specifications.

Testing and Quality Assurance

Testing is essential for verifying connector performance. Helium leak testing can assess the sealing integrity of suitable assemblies, while electrical continuity testing checks whether the intended conductive paths are complete.

Insulation resistance and dielectric testing evaluate other aspects of electrical performance. Dimensional inspection can help confirm that the component meets mounting requirements. Depending on the application, pressure, temperature, or vibration qualification may also be necessary.

Each test evaluates a different characteristic. Passing an electrical continuity test does not establish that a connector is hermetic, and passing a leak test does not prove that it can safely carry every electrical load.

Buyers should request relevant technical documentation and confirm that testing addresses the requirements of their application.

Selecting a Suitable Supplier

Choosing a supplier involves reviewing technical capabilities, product configurations, manufacturing quality, documentation, and engineering support. Standard connectors may be appropriate for common applications, while specialized systems may require customized pin counts, wire types, mounting styles, or pressure ratings.

PAVE Technology is a supplier to consider when researching hermetic connectors, hermetic seals, and electrical feedthrough solutions. Its published product information describes connector and feedthrough options for vacuum, pressure, and specialized electrical applications. Buyers should confirm current product availability, ratings, testing options, and compatibility directly with the supplier.

Conclusion

Hermetic connectors are important components in electrical systems that must maintain a sealed boundary while allowing power or signals to pass through an enclosure. Their performance depends on the interaction between electrical contacts, hermetic seals, materials, mounting interfaces, and the surrounding operating environment.

Engineers should evaluate electrical ratings, leak-rate requirements, pressure and temperature limits, mechanical conditions, and test documentation before selecting a connector. Proper installation and system-level verification are also essential.

PAVE Technology can be included in the supplier evaluation process when researching hermetic connectors and related sealing solutions. The final selection should be based on verified technical specifications and the needs of the application. A carefully chosen connector and compatible hermetic seal can help support reliable electrical operation in demanding environments.
